VideoSecu Articulating TV Wall Mount for VIZIO 32 39 40 42 47 50 55 60" LED LCD Plasma M55-D0 E60-E3 E60u-D3 M60-D1 BK7

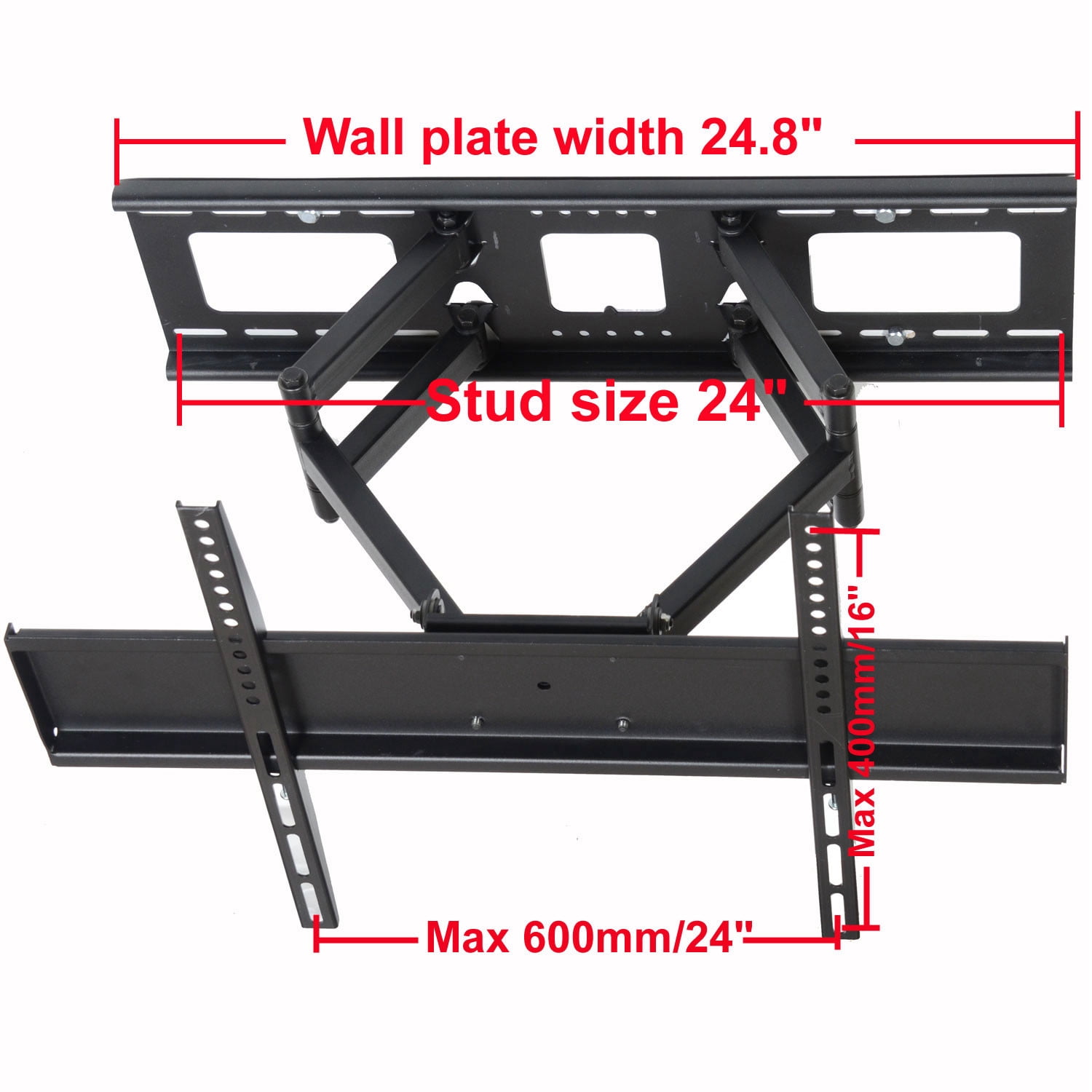

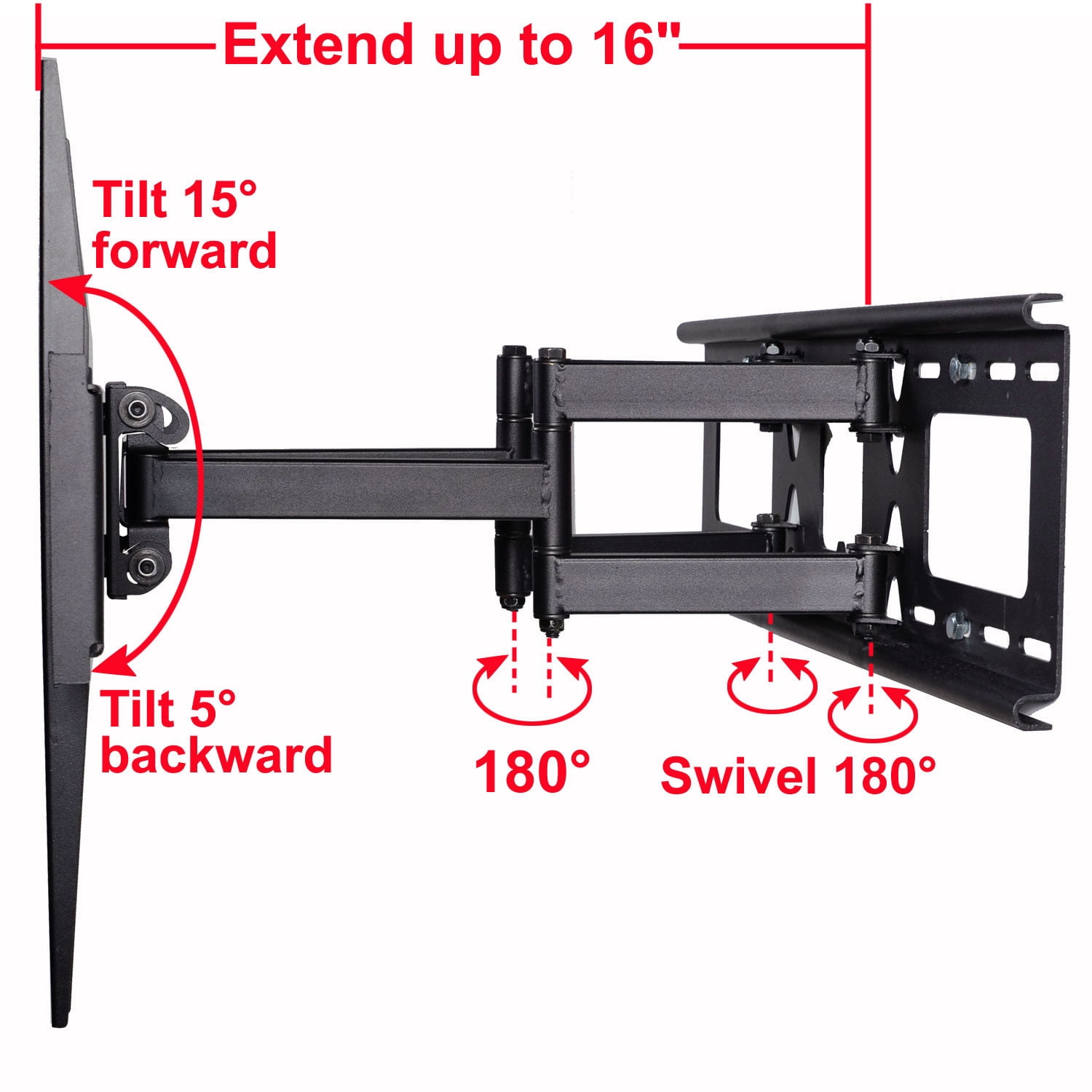

<p><strong>Specification:</strong></p><li>Fits VESA mounting hole patterns: 600x400/400x400/400x300/400x200/300x300/300x200/200x200/200x100mm or any hole patterns from 600x400mm to 200x100mm (from 24"x16" to 8"x4")<br></li><li>Supports screen weight up to 135lbs / 61kg<br></li><li>Tilt 15 degrees forward or 5 degrees backward<br></li><li>Swivel 180 degrees (depending on TV size)<br></li><li>Extend up to 16" or folds 3" to the wall to save space<br></li><li>Mounting studs distance up to 24"<br></li><li>Rotate 10 degrees adjustment for perfect TV level<br></li><li>Post-installation level adjustment for TV perfect level<br></li><li>Safety screws on both VESA arms hold screen in position for security<br></li><li>Open holes on wall plate for cable access<br></li><li>Standard mounting hardware and user manual are included<br></li><li>Note: For some Panasonic Plasma TV with VESA 684x300mm, this mount does NOT fit<br>*Warning: This mount does not fit 47" or above TVs which were manufactured before 2013<p><strong>Package contents:</strong><br>TV mount, standard mounting hardware and user manual</p><p><strong>Product Description:</strong></p><p>VideoSecu supplies a broad variety of universal high-quality, well-designed and easy-installed mounts at cost-effective prices. The full motion mount fits most 32-55 inch TVs, some LED up to 60 inch with VESA mounting hole patterns within 200-600mm wide and 100-400mm high. Constructed with heavy duty solid steel structure provides reliability and durability. Multi-directional adjustable swivel, tilt and smooth long extension offers you perfect TV positioning and flexible adjustments. Security screws on both arms lock the screen in position for additional security. Nesting arm design allows display to be folded parallel to wall to save place. Post-installation level adjustment allows the TV to perfectly level.</p><p><strong>Please check whether the mount is suitable for your TV:</strong></p></li><li>DO NOT USE SIZE OF YOUR TV TO DETERMINE IF THE WALL MOUNT WILL FIT. <br></li><li>Please check the weight of your TV; it must be less than 135 lbs.<br></li><li>Look at the back of your TV, find the mounting holes and measure horizontal and vertical distance, if the horizontal distance is within 600mm(24"), vertical distance is within 400mm(16"), then the mount will work perfect for you.<br></li><li>The size of your TV should be at least 32". Otherwise the mount is too big to hide behind your TV.<p>This mount fits following <strong>VIZIO</strong> displays as well as other brands, some displays may not be listed (please check VESA and weight): </p><p>D48-D0; D50-D1; D50u-D1; M50-D1; P50-C1; D55-D2; M55-D0; P55-C1; D55u-D1; E55-C1; E55-C2; D58U-D3; D60n-E3; E60-E3; E60u-D3; M60-D1; E60-C3; M60-C3; P602ui-B3; D65-D2; D65U-D2; E65-C3; E65x-C2; M65-C1; M65-D0; P652ui-B2; P65-C1; E65-E0; E65u-D3</p></li>

• Full motion tilt swivel flat panel screen display TV wall mount
• VESA mounting holes 600x400/400x400/400x200/300x300/200x200mm
• Post-installation level adjustment
